Cohen Home

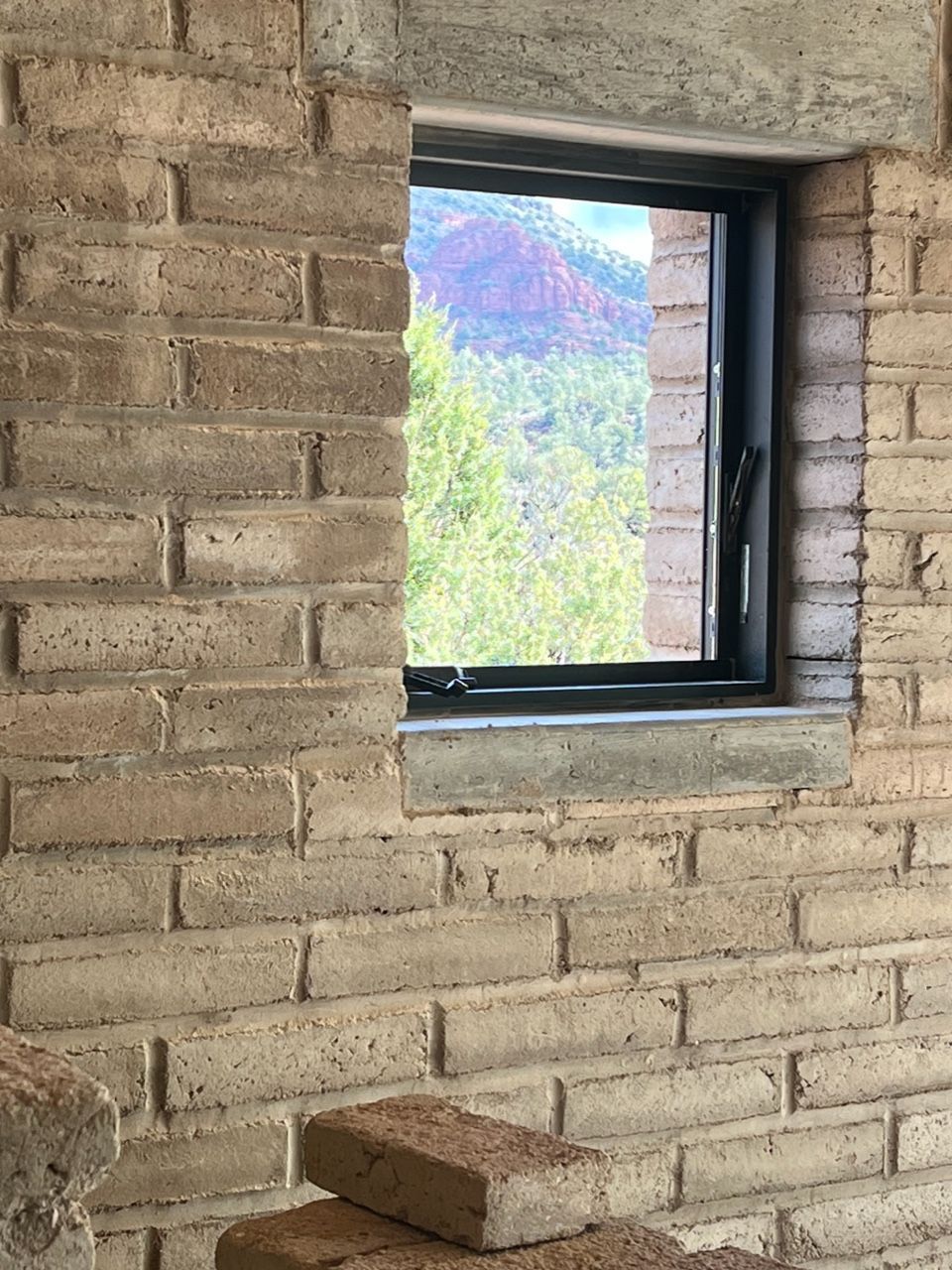

Sedona is the perfect climate for a Passive Solar Adobe Home. It is mild enough in the winters to build without much additional insulation and retain the heat from the sun well into the night. In the summer the thick walls, 2 layers of 8” adobe block and a 2” airspace in between for utilities and additional R-value, temper the extreme heat keeping the inside comfortably cool.

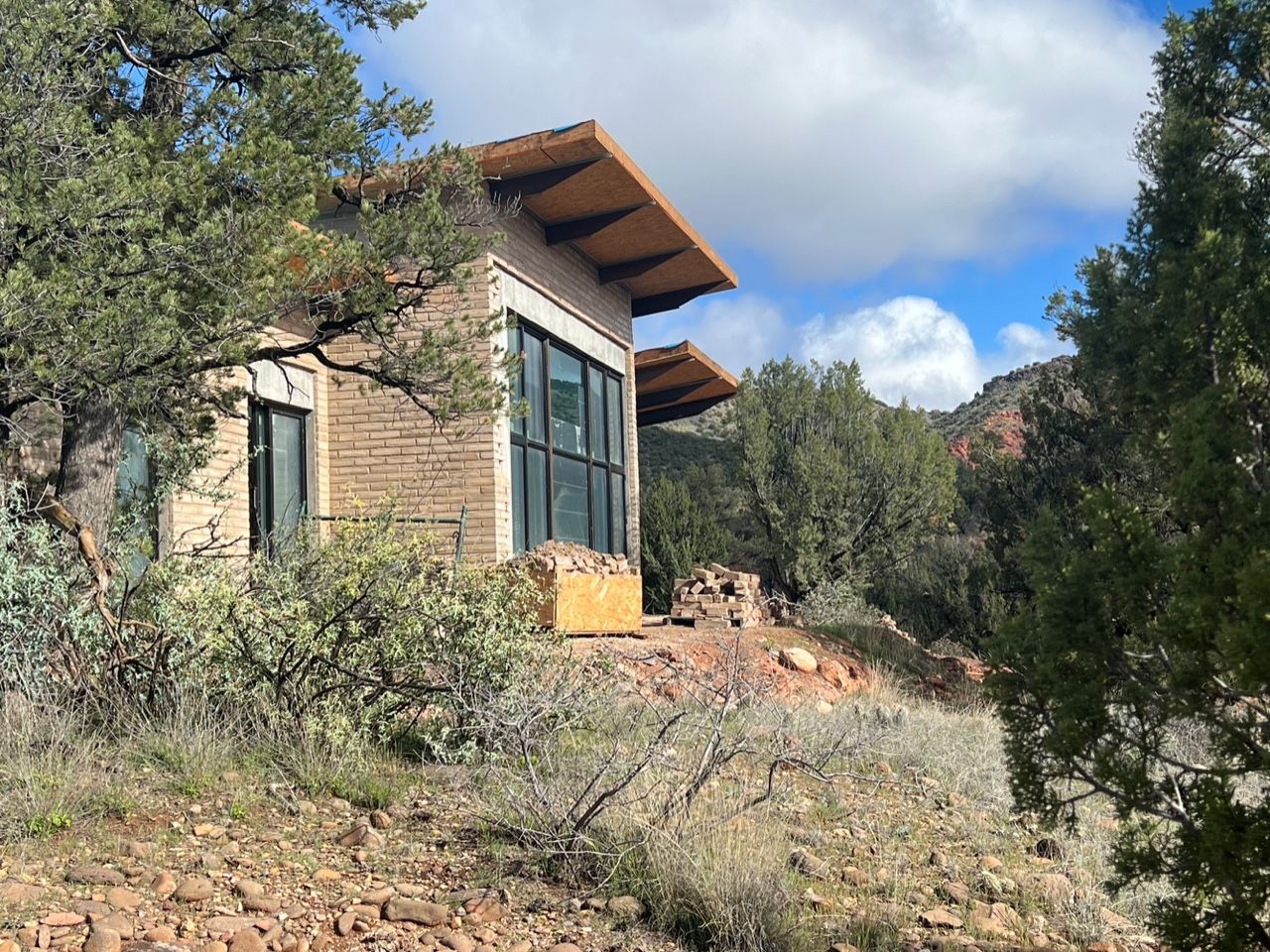

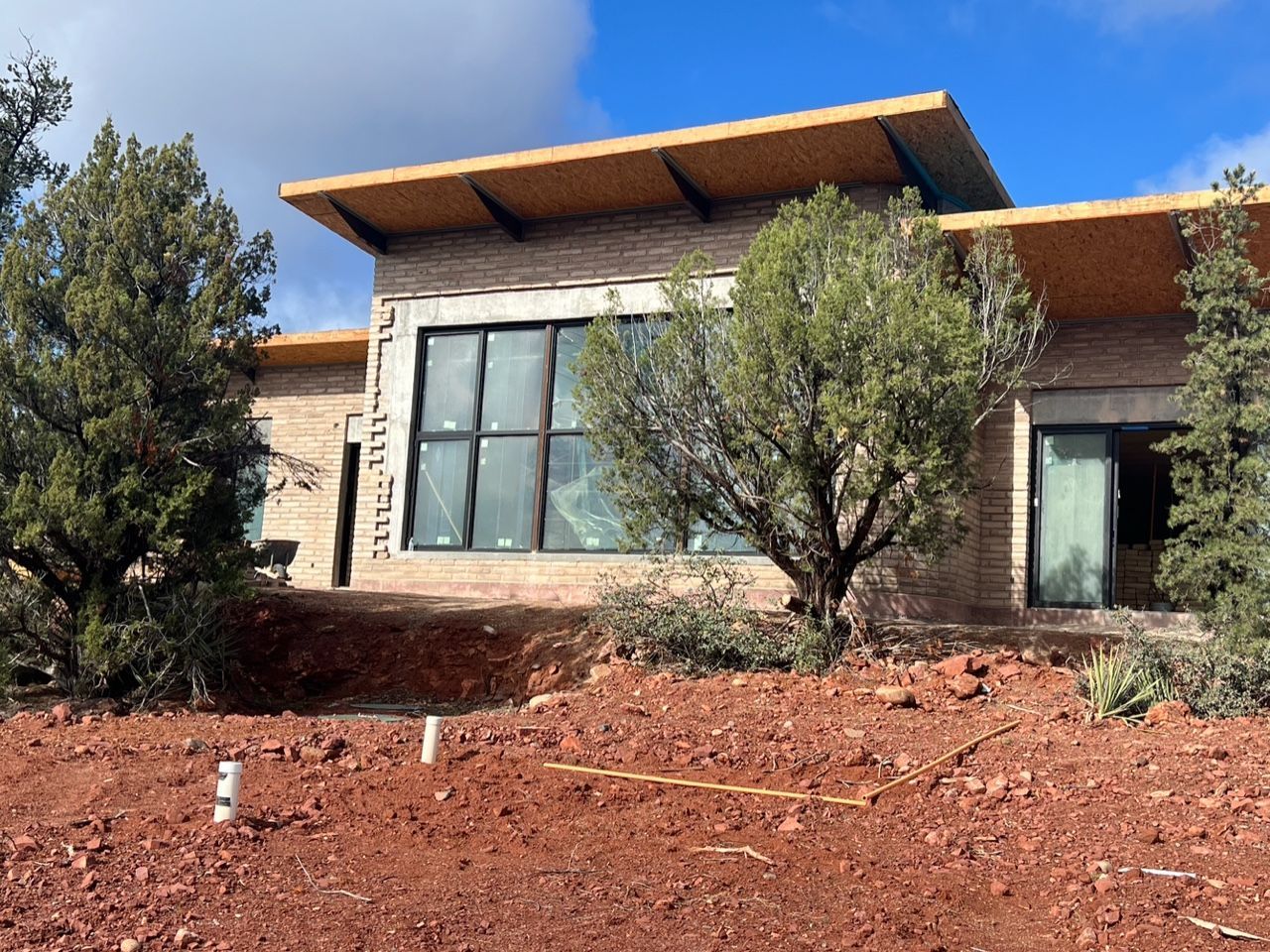

The views from this Site, primarily to the east, frame Cathedral Rock. These views coincided with optimal solar angles giving the East glass wall a dual purpose. This Site, as with most sites in Sedona surrounded by rock formations, is full of sun and striking views.


  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button

SPECS

Year Completed On the Boards


Type of Project: Single Family Adobe Home

Location: Sedona, Arizona


Square Footage: 1,793 Sq. Ft.   Site Size: 2.5 Acres


Primary Materials:

  • 8” Adobe Block
  • steel I-beams
  • concrete headers
  • glass
  • (no wood used)
